ECE5725 Project: Parking Lot

Design and Testing

 Assemble the robot car referring to Lab3

Figure 4. Preprocessed image to split the black rectangular region



Figure 5. Grayscaled image

Use Morphological Transformations to maximize contrast with the following code:

Use findContours function to find the contours of characters:

Note: In OpenCV 3.x this function needs to return 3 values which is different from the OpenCV 2.x version.



Figure 6. Image processed with findContours

Draw contours using drawContours function:

Visualize possible contours of characters:

Figure 7. Image processed with drawContours

Splitting character areas using getRectSubPix( ):

Crop characters to derive the following picture:

Figure 8. Cropped characters

Finally, make the characters bigger with copyMakeBorder() function to generate the picture result and save it as "result.jpg":

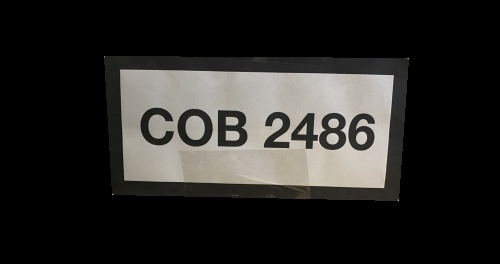

Here is the generated final result:

Figure 9. Final result

Perform license plate recognition
Use tesseract engine to recognize the characters by running:

The detection results are saved in the "file.txt".
We got the detection results by reading this file with the following codes:

Then by comparing the results and target license plate, we can know whether the robot should move forward or stop here.

Design the car control algorithms

We utilized PWM to control the left and right motors. A PWM instance can be created using p = GPIO.PWM(26, frequency)   and can be started using p.start(dutycycle). To change the duty cycle of a pulse width modulation signal, we use pa.ChangeDutyCycle(dc). Since our robot car moves slowly in order to capture images and detect during the movement, the dutycycle was set to be about 70. To ensure the car moves in a straight line and to avoid inconsistency in speeds of two motors, we adjusted the two duty cycles to be different. When the car needs to turn right to park in front of the right license plate, the left motor moves forward while the right motor moves backward.

Flow Chart

Here are three flow charts describing image processing and car control algorithms.

This flow chart describes the whole picture of the software control algorithm including both image processing and car control.

The following flow chart describes the image processing algorithm.

The following flow chart describes the car control algorithm.

---

Result

We eventually reached the goal of our project. In the software part, our robot car could successfully capture images using the Picamera. The car would take pictures each time it drives forward for a distance and stops. When a picture is taken, the program starts to process the taken images. A preprocessing algorithm is applied before the RPi begins to recognize the characters in pictures. After preprocessing images, characters will appear to be more clear and easy to be recognized by using pytesseract. The results recognized will be output to a file and can be read by the program. The recognized license plate number will also be printed on the piTFT screen, together with the original captured image and the target license plate number. The following three pictures show three kinds of situations where three license plates are detected and shown on the piTFT. The robot compares the target license plate number with the recognized characters and sees whether there is a match. If the target matches the derived texts, the robot will direct itself into the location in front of the corresponding license plate number. The program ends when the right license plate is detected, even though there are still license plates not being detected. Otherwise, the robot car moves forward and continues detecting until the right license plate is found.

In the hardware part, the robot car is initialized with the text “Welcome to Pi Parking '' shown on the piTFT screen. The program starts with the physical button being pressed, which in our case is GPIO 17 on the piTFT. Then a target license plate is generated from a list of three picked license plates by using choice() function from “random” library. The car slowly moves straight forward and stops to capture an image. If the right license plate is detected, the car turns right and parks itself in front of the corresponding license plate. If not, the car moves forward and repeats to detect until the right position is found.

Conclusion and Future Work

We designed and tested a parking lot with an autonomous robot car. We successfully reached our goals by developing image processing and car control algorithms in software using OpenCV and PWM signals. We also set up a parking lot and constructed our own robot car. To detect images using the camera, we installed the camera on the right side of the car so that the car could detect during its movement. For the future work, we could consider develop a closed-loop control algorithm to give the car some feedbacks regarding its movement so that the car would move forward in a straight line more easily without adjusting the parameters in our code. Another possible future work would be to develop a parking algorithm with some sensors so that the car would park in a specific slot more accurately.

Parts List

• Raspberry Pi $35.00
• Motor Driver TB6612FNG $4.95
• Wheel robot platform $24.99
• Raspberry Pi Camera V2 $25.00

Total: $0 (Provided from lab)

References

# Opencv
import cv2
import numpy as np
from picamera import PiCamera
# import pytesseract
from random import choice
# car control
import time
import RPi.GPIO as GPIO
import sys, pygame
from pygame.locals import *
import os
from PIL import Image

# run cmd
import subprocess

# ======================= GPIO pygame Initialize ===========================
os.putenv('SDL_VIDEODRIVER', 'fbcon')  # Display on piTFT
os.putenv('SDL_FBDEV', '/dev/fb0')  #
os.putenv('SDL_MOUSEDRV', 'TSLIB')  # Track mouse clicks on piTFT
os.putenv('SDL_MOUSEDEV', '/dev/input/touchscreen')

GPIO.setmode(GPIO.BCM)  # Set for broadcom numbering not board numbers...
# PWM control
GPIO.setup(26, GPIO.OUT)  # set GPIO 26 as PWMA
GPIO.setup(16, GPIO.OUT)  # set GPIO 16 as PWMB
# direction control
GPIO.setup(5, GPIO.OUT)  # set GPIO 5 as AIN1
GPIO.setup(6, GPIO.OUT)  # set GPIO 6 as AIN2
GPIO.setup(20, GPIO.OUT)  # set GPIO 20 as BIN1
GPIO.setup(21, GPIO.OUT)  # set GPIO 20 as BIN1
# button control
GPIO.setup(17, GPIO.IN, pull_up_down=GPIO.PUD_UP)
GPIO.setup(22, GPIO.IN, pull_up_down=GPIO.PUD_UP)
GPIO.setup(23, GPIO.IN, pull_up_down=GPIO.PUD_UP)
GPIO.setup(27, GPIO.IN, pull_up_down=GPIO.PUD_UP)

# colors
WHITE = (255, 255, 255)
RED = (255, 0, 0)
GREEN = (0, 255, 0)
BLACK = (0, 0, 0)
size = width, height = 320, 240
# pygame initialize
pygame.init()
pygame.mouse.set_visible(False)
screen = pygame.display.set_mode((320, 240))  # screen layout
my_font = pygame.font.Font(None, 25)

# ============================== Car Control ==================================
fa = 50
fb = 50
dca = 0
dcb = 0
# To create a PWM instance:
pa = GPIO.PWM(26, fa)
pb = GPIO.PWM(16, fb)

# To start PWM:
pa.start(dca)  # where dc is the duty cycle (0.0 <= dc <= 100.0)
pb.start(dcb)


def control_servo(serv_num, direction, dc):
    # Motor A
    if serv_num == "left":
        # CW
        if direction == 'cw':
            GPIO.output(5, GPIO.HIGH)
            GPIO.output(6, GPIO.LOW)
            pa.ChangeDutyCycle(dc)
        if direction == 'ccw':
            GPIO.output(5, GPIO.LOW)
            GPIO.output(6, GPIO.HIGH)
            pa.ChangeDutyCycle(100)
        if direction == 'stop':
            pa.ChangeDutyCycle(0)

    if serv_num == "right":
        if direction == 'cw':
            GPIO.output(20, GPIO.HIGH)
            GPIO.output(21, GPIO.LOW)
            pb.ChangeDutyCycle(dc)
        if direction == 'ccw':
            GPIO.output(20, GPIO.LOW)
            GPIO.output(21, GPIO.HIGH)
            pb.ChangeDutyCycle(dc)
        if direction == 'stop':
            pb.ChangeDutyCycle(0)


# detecting if text equals to the target texts
match = False


def car_control(iftext):
    '''
    iftext: detecting if text equals to target
    if equals car turn around into the position
    else moving forward
    '''
    if iftext:
        # if match target license, turn right
        # go straight
        control_servo("left", 'cw', 65)
        control_servo("right", 'ccw', 73)
        time.sleep(1)
        # turn right
        control_servo("left", 'cw', 90)
        control_servo("right", 'cw', 96)
        time.sleep(0.75)
        # move forward
        control_servo("left", 'cw', 65)
        control_servo("right", 'ccw', 73)
        time.sleep(1.7)
        # continue to turn right
        #control_servo("left", 'cw', 90)
        #control_servo("right", 'cw', 96)
        #time.sleep(0.15)
        control_servo("left", 'stop', 0)
        control_servo("right", 'stop', 0)
    # else:
    #    control_servo("left", 'stop')
    #    control_servo("right", 'stop')


def image_resize(filename):
    baselen = 160
    image = Image.open(filename)
    w, h = image.size
    if w <= baselen and h <= baselen:
        print(filename, 'is in proper size.')
        return
    if (1.0 * w / baselen) > (1.0 * h / baselen):
        scale = 1.0 * w / baselen
        new_im = image.resize((int(w / scale), int(h / scale)), Image.ANTIALIAS)

    else:
        scale = 1.0 * h / baselen
        new_im = image.resize((int(w / scale), int(h / scale)), Image.ANTIALIAS)

    new_im.save('show.jpg')
    new_im.close()


# show the detected license number and target number
def display_screen(text, target_text):
    screen.fill(BLACK)  # Black Screen
    # Detected text
    detect_txt = "Detected license: " + text
    detect_surface = my_font.render(detect_txt, True, WHITE)
    detect_rect = detect_surface.get_rect(center=(160, 30))
    screen.blit(detect_surface, detect_rect)
    # Target text
    target_txt = "Target license: " + target_text
    target_surface = my_font.render(target_txt, True, WHITE)
    target_rect = target_surface.get_rect(center=(160, 210))
    screen.blit(target_surface, target_rect)
    # image display
    image_resize('display.jpg')

    # im_display = pygame.image.load("display.jpg")
    im_display = pygame.image.load('show.jpg')
    img_rect = im_display.get_rect()
    img_rect.right = 240
    img_rect.top = 60
    screen.blit(im_display, img_rect)
    pygame.display.flip()  # display on actual screen


# ==============================Image Process Function=====================================
camera = PiCamera()


# get PiCamera picture
def imageCap():
    camera.resolution = (2592, 1944)
    camera.framerate = 15
    camera.start_preview()
    camera.brightness = 65
    camera.rotation = 0
    time.sleep(0.2)
    camera.capture('image.jpg')
    camera.stop_preview()


def imageProcess():
    '''
        number plate localization and background delete turn into binary image
    input: image.ipg from piCamera
    return: result.jpg
    '''
    # global start_time
    # start_time = time.time()
    # Reading Image
    # im = Image.open("image.jpg")
    # angle = 180
    # out = im.rotate(angle,expand=True)
    # out.save("image.jpg")
    ori_img = cv2.imread("image.jpg")
    img = ori_img[900:1600, 600:2000]  # can be restrict to smaller region
    cv2.imwrite('display.jpg', img)

    # image shape
    height, width, channel = img.shape

    # converge image to grayscale
    # hsv = cv2.cvtColor(img_ori, cv2.COLOR_BGR2HSV)
    # gray = hsv[:,:,2]
    img_gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)

    # Maximize Contrast
    structuringElement = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))
    imgTopHat = cv2.morphologyEx(img_gray, cv2.MORPH_TOPHAT, structuringElement)
    imgBlackHat = cv2.morphologyEx(img_gray, cv2.MORPH_BLACKHAT, structuringElement)

    imgGrayscalePlusTopHat = cv2.add(img_gray, imgTopHat)
    img_gray = cv2.subtract(imgGrayscalePlusTopHat, imgBlackHat)

    # Adaptive thresholding
    img_blurred = cv2.GaussianBlur(img_gray, ksize=(5, 5), sigmaX=0)
    img_thresh = cv2.adaptiveThreshold(
        img_blurred,
        maxValue=255.0,
        adaptiveMethod=cv2.ADAPTIVE_THRESH_GAUSSIAN_C,
        thresholdType=cv2.THRESH_BINARY_INV,
        blockSize=19,
        C=9
    )

    # Find Contours
    binary, contours, hierarchy = cv2.findContours(
        img_thresh,
        cv2.RETR_LIST,
        cv2.CHAIN_APPROX_SIMPLE
    )
    # black temp pic
    temp_result = np.zeros((height, width, channel), dtype=np.uint8)
    # draw contours
    cv2.drawContours(temp_result, contours=contours, contourIdx=-1, color=(255, 255, 255))
    # cv2.imwrite('temp.jpg', temp_result)

    # Prepare data
    contours_dict = []
    for contour in contours:
        x, y, w, h = cv2.boundingRect(contour)
        cv2.rectangle(temp_result, pt1=(x, y), pt2=(x + w, y + h), color=(255, 255, 255), thickness=2)

        # insert to dict
        contours_dict.append({
            'contour': contour,
            'x': x,
            'y': y,
            'w': w,
            'h': h,
            'cx': x + (w / 2),
            'cy': y + (h / 2)
        })
    # Select Candidates by char size
    MIN_AREA = 80
    MIN_WIDTH, MIN_HEIGHT = 2, 8
    MIN_RATIO, MAX_RATIO = 0.25, 1.0

    possible_contours = []

    cnt = 0
    for d in contours_dict:
        area = d['w'] * d['h']
        ratio = d['w'] / d['h']

        if area > MIN_AREA \
                and d['w'] > MIN_WIDTH and d['h'] > MIN_HEIGHT \
                and MIN_RATIO < ratio < MAX_RATIO:
            d['idx'] = cnt
            cnt += 1
            possible_contours.append(d)

    # visualize possible contours
    temp_result = np.zeros((height, width, channel), dtype=np.uint8)
    for d in possible_contours:
        cv2.rectangle(temp_result, pt1=(d['x'], d['y']), pt2=(d['x'] + d['w'], d['y'] + d['h']), color=(255, 255, 255),
                      thickness=2)
    # cv2.imwrite('temp2.jpg', temp_result)

    #  Select Candidates by Arrangement of Contours
    MAX_DIAG_MULTIPLYER = 5  # 5
    MAX_ANGLE_DIFF = 12.0  # 12.0
    MAX_AREA_DIFF = 0.5  # 0.5
    MAX_WIDTH_DIFF = 0.8
    MAX_HEIGHT_DIFF = 0.2
    MIN_N_MATCHED = 3  # 3

    def find_chars(contour_list):
        matched_result_idx = []

        for d1 in contour_list:
            matched_contours_idx = []
            for d2 in contour_list:
                if d1['idx'] == d2['idx']:
                    continue

                dx = abs(d1['cx'] - d2['cx'])
                dy = abs(d1['cy'] - d2['cy'])

                diagonal_length1 = np.sqrt(d1['w'] ** 2 + d1['h'] ** 2)

                distance = np.linalg.norm(np.array([d1['cx'], d1['cy']]) - np.array([d2['cx'], d2['cy']]))
                if dx == 0:
                    angle_diff = 90
                else:
                    angle_diff = np.degrees(np.arctan(dy / dx))
                area_diff = abs(d1['w'] * d1['h'] - d2['w'] * d2['h']) / (d1['w'] * d1['h'])
                width_diff = abs(d1['w'] - d2['w']) / d1['w']
                height_diff = abs(d1['h'] - d2['h']) / d1['h']

                if distance < diagonal_length1 * MAX_DIAG_MULTIPLYER \
                        and angle_diff < MAX_ANGLE_DIFF and area_diff < MAX_AREA_DIFF \
                        and width_diff < MAX_WIDTH_DIFF and height_diff < MAX_HEIGHT_DIFF:
                    matched_contours_idx.append(d2['idx'])

            # append this contour
            matched_contours_idx.append(d1['idx'])

            if len(matched_contours_idx) < MIN_N_MATCHED:
                continue

            matched_result_idx.append(matched_contours_idx)

            unmatched_contour_idx = []
            for d4 in contour_list:
                if d4['idx'] not in matched_contours_idx:
                    unmatched_contour_idx.append(d4['idx'])

            unmatched_contour = np.take(possible_contours, unmatched_contour_idx)

            # recursive
            recursive_contour_list = find_chars(unmatched_contour)

            for idx in recursive_contour_list:
                matched_result_idx.append(idx)

            break

        return matched_result_idx

    result_idx = find_chars(possible_contours)
    matched_result = []
    for idx_list in result_idx:
        matched_result.append(np.take(possible_contours, idx_list))

    # visualize possible contours
    temp_result = np.zeros((height, width, channel), dtype=np.uint8)

    for r in matched_result:
        for d in r:
            cv2.rectangle(temp_result, pt1=(d['x'], d['y']), pt2=(d['x'] + d['w'], d['y'] + d['h']),
                          color=(255, 255, 255), thickness=2)

    # Rotate Plate images
    PLATE_WIDTH_PADDING = 1.3  # 1.3
    PLATE_HEIGHT_PADDING = 1.5  # 1.5
    MIN_PLATE_RATIO = 3
    MAX_PLATE_RATIO = 10

    plate_imgs = []
    plate_infos = []

    for i, matched_chars in enumerate(matched_result):
        sorted_chars = sorted(matched_chars, key=lambda x: x['cx'])

        plate_cx = (sorted_chars[0]['cx'] + sorted_chars[-1]['cx']) / 2
        plate_cy = (sorted_chars[0]['cy'] + sorted_chars[-1]['cy']) / 2

        plate_width = (sorted_chars[-1]['x'] + sorted_chars[-1]['w'] - sorted_chars[0]['x']) * PLATE_WIDTH_PADDING

        sum_height = 0
        for d in sorted_chars:
            sum_height += d['h']

        plate_height = int(sum_height / len(sorted_chars) * PLATE_HEIGHT_PADDING)

        triangle_height = sorted_chars[-1]['cy'] - sorted_chars[0]['cy']
        triangle_hypotenus = np.linalg.norm(
            np.array([sorted_chars[0]['cx'], sorted_chars[0]['cy']]) -
            np.array([sorted_chars[-1]['cx'], sorted_chars[-1]['cy']])
        )

        angle = np.degrees(np.arcsin(triangle_height / triangle_hypotenus))

        rotation_matrix = cv2.getRotationMatrix2D(center=(plate_cx, plate_cy), angle=angle, scale=1.0)

        img_rotated = cv2.warpAffine(img_thresh, M=rotation_matrix, dsize=(width, height))

        img_cropped = cv2.getRectSubPix(
            img_rotated,
            patchSize=(int(plate_width), int(plate_height)),
            center=(int(plate_cx), int(plate_cy))
        )

        if img_cropped.shape[1] / img_cropped.shape[0] < MIN_PLATE_RATIO or img_cropped.shape[1] / img_cropped.shape[
            0] < MIN_PLATE_RATIO > MAX_PLATE_RATIO:
            continue

        plate_imgs.append(img_cropped)
        plate_infos.append({
            'x': int(plate_cx - plate_width / 2),
            'y': int(plate_cy - plate_height / 2),
            'w': int(plate_width),
            'h': int(plate_height)
        })
        # cv2.imwrite('crop.jpg',img_cropped)

    # Another Thresholding to Find Chars Get the result
    longest_idx, longest_text = -1, 0
    plate_chars = []

    for i, plate_img in enumerate(plate_imgs):
        plate_img = cv2.resize(plate_img, dsize=(0, 0), fx=1.6, fy=1.6)
        _, plate_img = cv2.threshold(plate_img, thresh=0.0, maxval=255.0, type=cv2.THRESH_BINARY | cv2.THRESH_OTSU)

        # find contours again (same as above)
        _, contours, _ = cv2.findContours(plate_img, mode=cv2.RETR_LIST, method=cv2.CHAIN_APPROX_SIMPLE)

        plate_min_x, plate_min_y = plate_img.shape[1], plate_img.shape[0]
        plate_max_x, plate_max_y = 0, 0

        for contour in contours:
            x, y, w, h = cv2.boundingRect(contour)

            area = w * h
            ratio = w / h

            if area > MIN_AREA \
                    and w > MIN_WIDTH and h > MIN_HEIGHT \
                    and MIN_RATIO < ratio < MAX_RATIO:
                if x < plate_min_x:
                    plate_min_x = x
                if y < plate_min_y:
                    plate_min_y = y
                if x + w > plate_max_x:
                    plate_max_x = x + w
                if y + h > plate_max_y:
                    plate_max_y = y + h

        img_result = plate_img[plate_min_y:plate_max_y, plate_min_x:plate_max_x]

        img_result = cv2.GaussianBlur(img_result, ksize=(3, 3), sigmaX=0)
        _, img_result = cv2.threshold(img_result, thresh=0.0, maxval=255.0, type=cv2.THRESH_BINARY | cv2.THRESH_OTSU)
        img_result = cv2.copyMakeBorder(img_result, top=10, bottom=10, left=10, right=10,
                                        borderType=cv2.BORDER_CONSTANT, value=(0, 0, 0))
        cv2.imwrite('result.jpg', img_result)
        # chars = pytesseract.image_to_string(img_result, lang='eng', config='--psm 7')
        # print(chars)


if __name__ == '__main__':
    # license plate database
    target = ['GAU 3627', 'COB 2486', 'SXY 5725']
    # # image process and get result.jpg
    # imageProcess()
    flag = True
    # Sytem start time
    start = time.time()
    while flag:
        screen.fill(BLACK)  # Black Screen
        time.sleep(0.2)
        display = "Welcome to Pi Parking"
        text_surface = my_font.render(display, True, WHITE)  # display title of the system
        rect = text_surface.get_rect(center=(160, 60))
        screen.blit(text_surface, rect)
        pygame.display.flip()  # dispaly on actual screen
        # choose the template license randomly from the database
        target_text = choice(target)
        # press 17 start running
        if not GPIO.input(17):
            detectLicense = True
            detect_start = time.time()
            while detectLicense:
                # start car move forward
                control_servo("left", 'cw', 62)
                control_servo("right", 'ccw', 73)
                time.sleep(1)
                control_servo("left", 'stop', 0)
                control_servo("right", 'stop', 0)
                # get picture and save as image.jpg
                imageCap()
                # image process and get result.jpg
                print("image process")
                imageProcess()
                # OCR recognize
                # use command line to do ocr
                if not os.path.exists("result.jpg"):
                    continue
                cmd = "tesseract result.jpg file -l eng -psm 7"
                # english  single line
                print(subprocess.check_output(cmd, shell=True))
                # detect the license plate from the streaming picture
                f = open("file.txt", "r")
                text = f.readline()
                text = text.replace("\n", "")
                f.close()

                # detect if recognized plate is target_text
                if text == target_text:
                    match = True
                    detectLicense = False
                # display function
                # show the detected license number and target number
                display_screen(text, target_text)
                car_control(match)
                # delete file.txt to avoid writing error
                dcmd = "sudo rm file.txt *.jpg"
                print(subprocess.check_output(dcmd, shell=True))
                detect_end = time.time()
                if detect_end - detect_start > 50:
                    detectLicense = False
        if match:
            flag = False
        end = time.time()
        # software ending
        if end - start == 120: flag = False
        # physical ending
        if not GPIO.input(27):
            print("Button 27 has been pressed system out")
            flag = False

    GPIO.cleanup()
